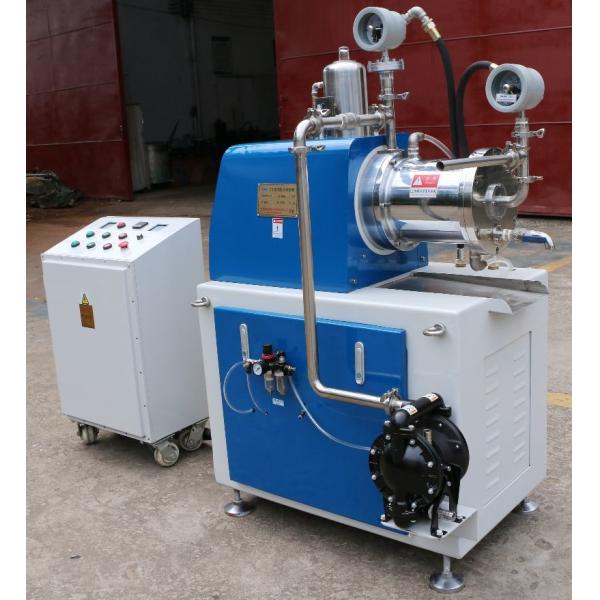

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

LTD Intelligent Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

Brand Name : LTD

Model Number : LTD06B

Certification : CE,ISO

Place of Origin : Dongguan,China

MOQ : 1set

Payment Terms : T/T

Supply Ability : 20-30 sets per month

Delivery Time : 20-25 days

Packaging Details : Standard export wooden case

Price : USD7600-9000/set

Name : Horizontal pin type sand mill

Grinding capacity : 6L

Motor power : 15kw, Ex-proof

Power supply : 380V 50Hz 3Phase (can be customized)

Outer chamber material : Carbon steel with chrome-plated or spray treatment

Inner chamber material : Wear resistant alloy steel/PU

Pins material : Tungsten steel

Discharg separator material : Wear resistant stainless steel

Mechanical seal : Burgmann from Germany

Feeding pump : 1" ARO pneumatic diaphragm pump

Contact Now

LTD-B Series 6L horizontal pin type sand mill / bead mill for super-fine grinding

Application:

Super-fine grinding for inks, car paint, anti-corrosion coatings, water-based color paste, wood coatings etc. with fineness 10-2μm.

Standard configuration:

Outer chamber: Carbon steel with chrome-plated or spray treatment

Inner chamber and rotor: Wear resistant alloy steel (for solvent based products)

Inner chamber and rotor: PU material (for water based products)

Discharge sieve screen: Wear resistant stainless steel

Mechanical seal: Burgmann from Germany

Technical Parameters:

Model
Chamber capacity(L)
Motor power(Kw)
Production capacity(L/h)
Media size(mm)
Weight(Kg)
Overall dimensions(mm)
LTD06B
6
15
40-250
0.8-2.0
500
900×750×1550
LTD10B
10
22
40-400
0.8-2.0
1000
950×800×1550
LTD30B
30
37
100-800
0.8-2.0
1300
1700×1050×1850
LTD50B
50
45
300-1000
0.8-2.0
1600
1750×1050×1950
LTD100B
100
75/95
300-2000
0.8-2.0
2800
2240×1000×2200
LTD150B
150
110
500-3500
0.8-2.0
3200
2800×1000×2200
LTD200B
200
155
900-4500
0.8-2.0
3800
2950×1000×2200
LTD500B
500
355
1500-12000
0.8-2.0
6500
3800×1400×2800
LTD1000B
1000
510
12000-15000
0.8-2.0
11000
4400×1600×2850

Grinding process

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

Structure classification of Horizontal Sand Mill
6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw
Material classification of Horizontal Sand Mill Spare Parts
6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

Industry

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

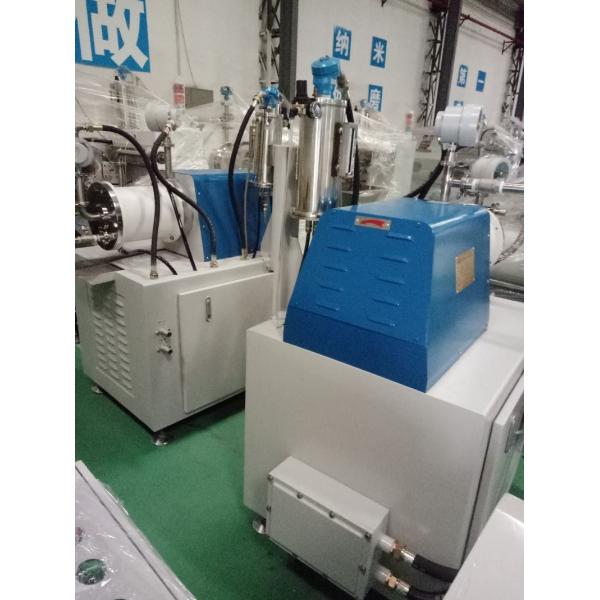

Our factory

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

Our certificates

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

Customer's case

6L Horizontal Pin Type Bead Mill Super Fine Sand Grinding Mill 15Kw

Support and Services:

Product Technical Support and Services:

- Comprehensive technical support for installation, operation, and maintenance

- Troubleshooting assistance for any issues or malfunctions

- Guidance on optimizing the performance of the equipment

- Training programs for operators to ensure proper usage and maximize efficiency

Packing and Shipping:

Product Packaging:

The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping:

Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.

FAQ:

Q: What is a sand mill/bead mill?

A: A sand mill/bead mill is a grinding machine used to reduce particle size by agitating beads in a liquid medium.

Q: What are the typical applications of a sand mill/bead mill?

A: Sand mills/bead mills are commonly used in industries such as paint, ink, coatings, and pigments for wet grinding and dispersion of materials.

Q: How does a sand mill/bead mill work?

A: In a sand mill/bead mill, the grinding chamber contains small beads that are agitated by a rotating shaft, causing the beads to collide and break particles down to the desired size.

Q: What are the advantages of using a sand mill/bead mill?

A: Some advantages of sand mills/bead mills include efficient particle size reduction, uniform particle distribution, and the ability to process a wide range of materials.

Q: How to choose the right sand mill/bead mill for my application?

A: When selecting a sand mill/bead mill, factors such as the desired particle size, material viscosity, production capacity, and required fineness should be considered to ensure optimal performance for your specific application.
