LTD-B Series 50L capacity pin type horizontal sand mill/bead mill for super-fine grinding
Features:

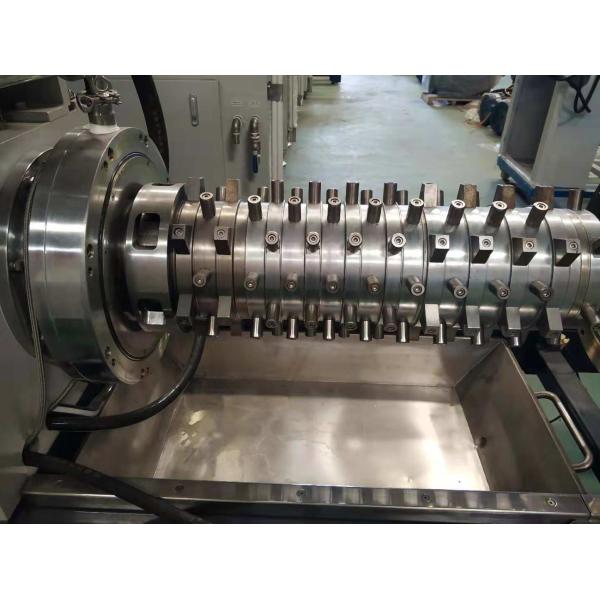

1) The specially designed encrypted pins structure is highly wear-resistant and corrosion-resistant, and can restore the pigment's
own hue to the maximum extent.
2) The efficiency can reach 4-5 times of traditional models;
3) Few grinding passes, good color;
4) Scientifically designed, energy consumption is reduced by more than 20% year-on-year;
5) Dynamic gap + dynamic screen discharging, no clogging, good temperature control;
6) The special piston adjusting cylinder device has unique emergency capabilities.
Standard configuration:
1) Outer cylinder material: SS304
2) Inner cylinder material: High wear-resistant alloy steel
3) Rotor material:High wear-resistant alloy steel
4) Pins material: WC( tungsten carbide)
5) Discharge separator: tungsten carbide
Parameters:
| Model | Chamber capacity(L) | Motor power(Kw) | Production capacity(L/h) | Media size(mm) | Weight(Kg) | Overall dimensions(mm) |
| LTD06B | 6 | 15 | 40-250 | 0.8-2.0 | 500 | 900×750×1550 |
| LTD10B | 10 | 22 | 40-400 | 0.8-2.0 | 1000 | 950×800×1550 |
| LTD30B | 30 | 37 | 100-800 | 0.8-2.0 | 1300 | 1700×1050×1850 |
| LTD50B | 50 | 45 | 300-1000 | 0.8-2.0 | 1600 | 1750×1050×1950 |
| LTD100B | 100 | 75/95 | 300-2000 | 0.8-2.0 | 2800 | 2240×1000×2200 |
| LTD150B | 150 | 110 | 500-3500 | 0.8-2.0 | 3200 | 2800×1000×2200 |
| LTD200B | 200 | 155 | 900-4500 | 0.8-2.0 | 3800 | 2950×1000×2200 |
| LTD500B | 500 | 355 | 1500-12000 | 0.8-2.0 | 6500 | 3800×1400×2800 |
| LTD1000B | 1000 | 510 | 12000-15000 | 0.8-2.0 | 11000 | 4400×1600×2850 |
Grinding process
Structure classification of Horizontal Sand Mill
Material classification of Horizontal Sand Mill Spare Parts

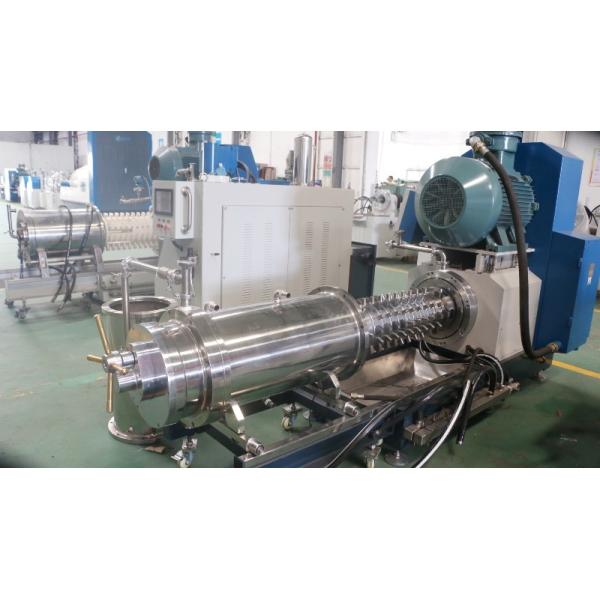

Real photos:
Working video
Industry
Our factory
Our certificates
Customer's site
Support and Services:
Product Technical Support and Services:
- Comprehensive technical support for installation, operation, and maintenance
- Troubleshooting assistance for any issues or malfunctions
- Guidance on optimizing the performance of the equipment
- Training programs for operators to ensure proper usage and maximize efficiency
Packing and Shipping:
Product Packaging:
The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.
Shipping:
Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.
FAQ:
Q: What is a sand mill/bead mill?
A: A sand mill/bead mill is a grinding machine used to reduce particle size by agitating beads in a liquid medium.
Q: What are the typical applications of a sand mill/bead mill?
A: Sand mills/bead mills are commonly used in industries such as paint, ink, coatings, and pigments for wet grinding and dispersion of materials.
Q: How does a sand mill/bead mill work?
A: In a sand mill/bead mill, the grinding chamber contains small beads that are agitated by a rotating shaft, causing the beads to collide and break particles down to the desired size.
Q: What are the advantages of using a sand mill/bead mill?
A: Some advantages of sand mills/bead mills include efficient particle size reduction, uniform particle distribution, and the ability to process a wide range of materials.
Q: How to choose the right sand mill/bead mill for my application?
A: When selecting a sand mill/bead mill, factors such as the desired particle size, material viscosity, production capacity, and required fineness should be considered to ensure optimal performance for your specific application.
